10.0 E-Commerce Multichat
10.1 AiLedger E-Commerce Multichat Desktop Electron App
This is an e-commerce multichat application created using electron and JavaScript and it runs on desktop OS (Windows and Mac).
10.2 App development setup
Clone Repository and move into the repository folder.
-
cd repository
Install the dependencies to run the application.
-
npm install
Run the application.
-
npm start
10.3 Electron App Deployment Steps (For Windows)
Electron Builder is used to package the app for Windows environment. Deployment steps are as follows:
First, create a “build” directory on root. Save an “icon.ico” file in the build directory with the icon that will be used for the app.
Install the “electron builder” package.
-
npm install electron-builder-save-dev

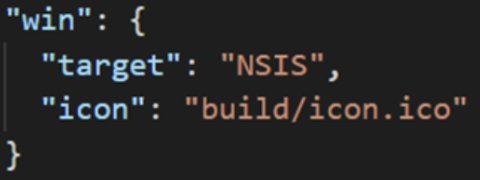

If the windows target in package.json is not “NSIS”, then set it to “NSIS”.
Run the packaging command:
-
npm run dist
The installed executable file will be inside the “dist” folder, in the following path:
-
dist → windows → AiLedger E-Commerce Multichat.exe
Click on “AiLedger E-Commerce Multichat.exe” to run the multichat app.
Further reading regarding electron-builder and deployment in windows can be found here:
10.4 Electron App Deployment Steps (For MacOS)
Electron Packager is used to package the app for Mac OS environment. Deployment steps are as follows:
-
First, create a “build” directory on root. Save an “icon.icns” file in the build directory with the icon that will be used for the app.
-
Install the “electron packager” package.
-
npm install --save-dev electron-packager
-
-
Run the packaging command:
-
npx electron-packager . --icon=./build/icon.icns
-
-
The installed executable file will be inside the “AiLedger E-Commerce Multichat-darwin-x64” folder, in the following path:
-
AiLedger E-Commerce Multichat-darwin-x64 → AiLedger E-Commerce Multichat.app → Contents → MacOS → AiLedger E-Commerce Multichat
-
-
Click on “AiLedger E-Commerce Multichat” to run the multichat app.
Further reading regarding electron-packager and deployment in mac can be found here:

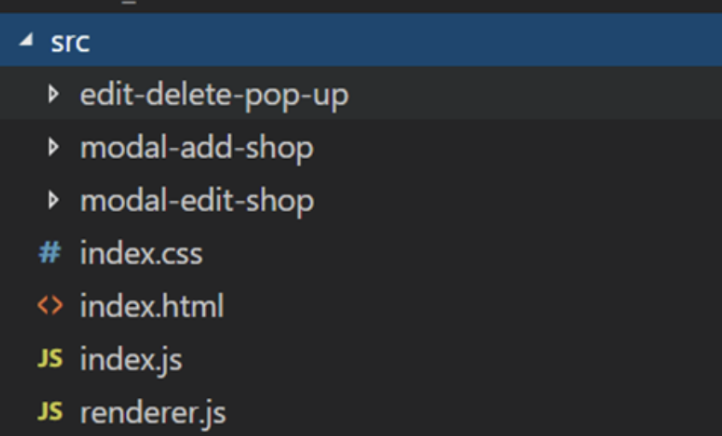

10.5 Files Overview and Function Explanation
10.5.1 Edit-delete-pop-up-folder

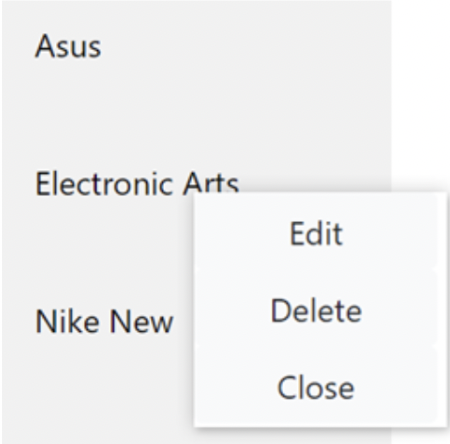

Edit-delete-pop-up folder: contains the code related to the pop-up (with edit and delete option) which opens up when right-clicked on any shop.
Functions inside the edit-delete JS folder:
-
closePopUp: close the edit-delete pop-up
-
openEdit: open the edit-delete pop-up
-
deleteShop: delete the selected shop
10.5.2 Modal-add-shop folder
Modal-add-shop folder: contains the code related to the modal that is opened when the “Add New Shop” button is clicked.
Functions inside the modal-add-shop JS folder:
-
updateDropdown: Updates the dropdown to change the selected shop platform (example: Shopee, Lazada, etc.)
-
Input: currentValue → the current selected shop platform
-
-
closeModal: close the add-shop pop-up
-
onSubmit: submit the details about the new shop, to store the information of the newly added shop.
-
closeNameAlert: close alert for invalid shop name
-
closePlatformAlert: close alert for invalid platform
-
loadErrorForNameExists: open alert for using a shop name that already exists
-
Input: errorExists → Boolean, TRUE for error, FALSE otherwise
-
-
closeNameUsedAlert: close alert for invalid shop name
10.5.3 Modal-edit-shop folder

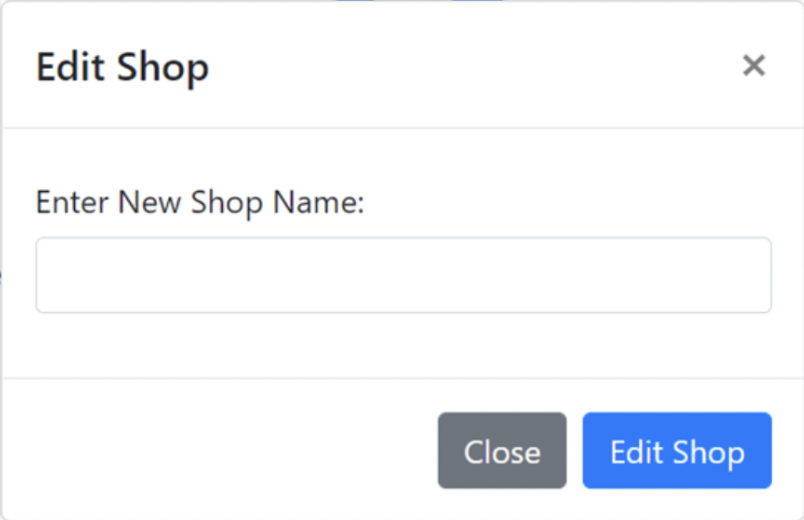

Modal-edit-shop folder: contains the code related to the modal that is opened when the “Edit” button is clicked.
Functions inside the edit-shop JS file:
-
closeNameAlert: close the alert for invalid name
-
closeModal: close the add-shop pop-up
-
onSubmit: Submit the new shop name to be stored
10.5.6 Index.js file
Index.js file: contains the backend code (node JS) code, which is used to create and store the electron windows. Inter-process Communication happens between index.js file (backend, for example) and the rest of the JS files (such as renderer.js, modal-edit-shop.js, etc. which are considered the frontend of the application). Functions inside are:
o createWindow: Create the main electron window, with the akaun.com login page displayed.
o openMultichat: Open the multichat app after login into akaun.com.
o createLeftSideMenu: Create the left side menu containing all the shop names.
o addBrowserView: Create a new browser view for a shop. Separate Browser Views are created for each shop and stored in a list.
Input: url → url of the platform
-
shopName → Name of the selected shop
o checkIfExist: Check if the selected shop exists in the list of already loaded browser views.
o createNewShop: Create the modal for adding a new shop.
o submitNewShop: Store details of new shop in local storage.
Input: shopName → name of new shop
-
platform → e-commerce platform of the new shop
o closeNewShopCreate: close modal of the add-new-shop
o openLogin: Function used to open the akaun.com login window.
o editShop: Create the modal for editing a shop.
o editShopClose: Close the modal for editing a shop.
o submitEditShop: Store the new shop details in local storage.
Input: newShopName → Name of the new shop
o deleteShop: Delete the selected shop and remove data from local storage.
o openEditDeletePopUp: Open the modal for edit-delete window
Input: platform → platform the selected shop to edit
-
shopName → shop name of the selected shop to edit
o closeEditDelete: Close the modal for edit delete window
10.5.6 Renderer.js file
Renderer.js file: contains the JavaScript code that interacts with the index.html file. Functions inside are:
o openLink: Send IPC connection to main to open the browser view of the selected shop.
Input: platform → selected platform of the shop
-
shopName → selected shop name
o loadSideMenu: Load the shop names in the left side menu.
Input: htmlStr → contains the html of the left side menu which is received from main using IPC.
-
totalShops → total number of shops
o createNewShop: IPC to main to create a new shop modal.
o closeForm: close the modal for adding a new shop.
o rightClick: IPC send to main to open the modal for right-click which has the option for editing and deleting.
